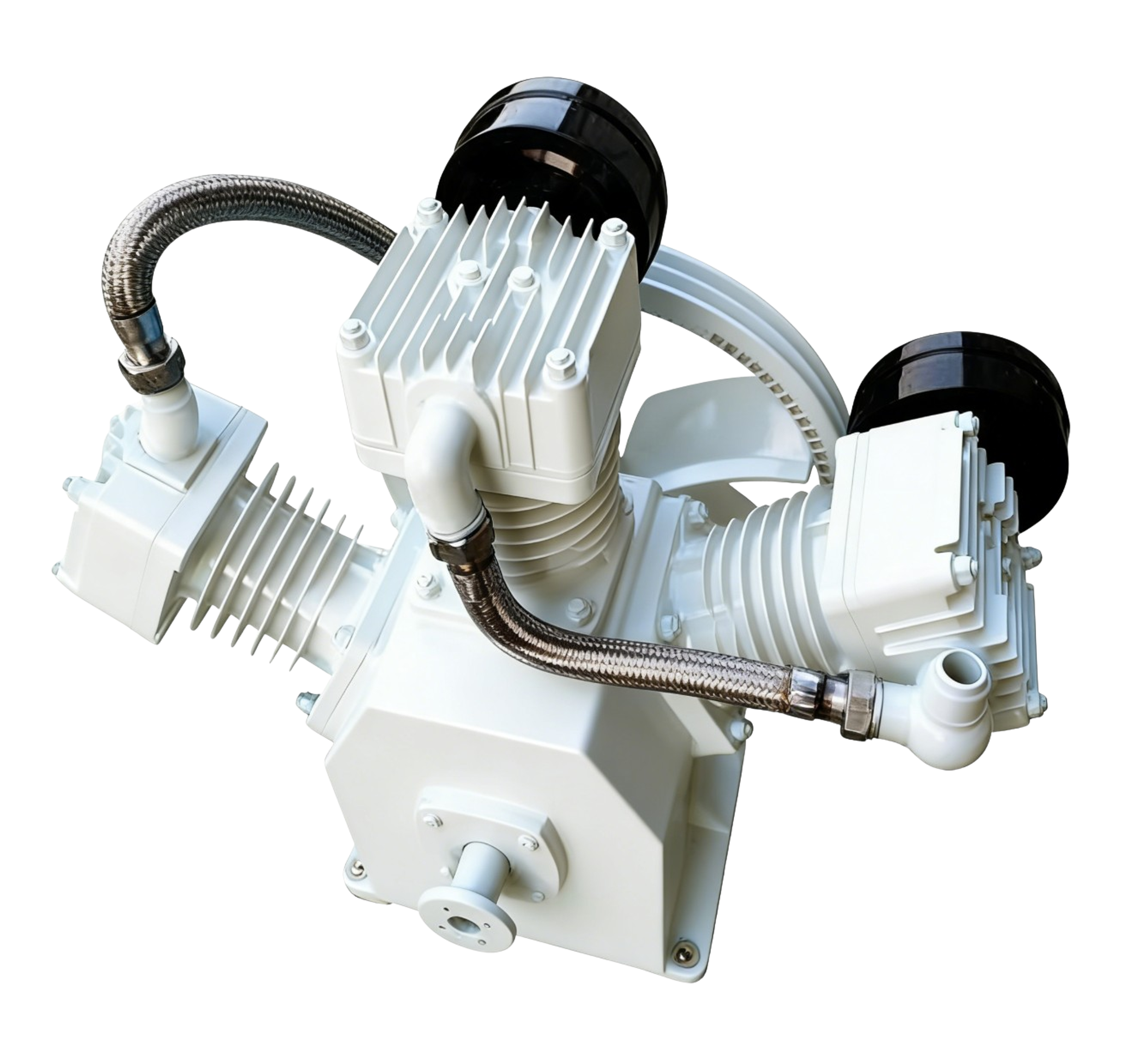

TAT Oil-Free is the standalone airend version of our oil-free piston platform — sold as bare pump for OEM integration, replacement, and custom assembly. Self-lubricated piston rings (PEEK / PTFE composite) eliminate the need for crankcase oil. IKO rolling bearings with SKF lubricant in the bearing race only — none enters the compression chamber. Range covers 2 to 25 HP at 8 to 10 bar.
The same airend used in EMAX's TAT Series cabinet machines — choose pump only when you have your own motor, controls, and frame.
Every model in TAT-PUMP-SERIES ships with these baseline features. Per-model differences live on each model page.
| Model | Power | Flow | Pressure | Tag | |
|---|---|---|---|---|---|
TAT-2050 | 2 HP / 1.5 kW | 0.15 m³/min | 0.8 MPa | Quote | |
TAT-30100 | 3 HP / 2.24 kW | 0.22 m³/min | 0.8 MPa | Quote | |
TAT-55150 | 5.5 HP / 4.1 kW | 0.42 m³/min | 0.8 MPa | Quote | |
TAT-75250 | 7.5 HP / 5.6 kW | 0.6 m³/min | 0.8 MPa | Quote | |
TAT-100250 | 10 HP / 7.46 kW | 1 m³/min | 1 MPa | Popular | Quote |
TAT-150300 | 15 HP / 11.2 kW | 1.2 m³/min | 1 MPa | Popular | Quote |
TAT-200500 | 20 HP / 15 kW | 1.5 m³/min | 1 MPa | Quote | |
TAT-250500 | 25 HP / 18.5 kW | 2 m³/min | 1 MPa | Quote |
One contact in Shanghai, one balanced container quote, one datasheet your regulator can sign off on.
